线圈和密封件

当与密封件一起使用时，盘带提供相对于其它卡箍类型来说成本更低的紧固方案，非常适合井下和海底应用。30-40 磅“安全盘带”允许单人操作员安全操作。可在各种材料中用于以下应用。
  • 井下应用
  • 海底应用
  • 绝缘应用

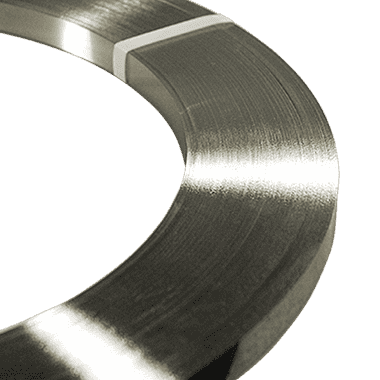

线圈和密封件 产品规格

Coils for Downhole & Subsea Applications

PART NUMBER MATERIAL WIDTH (IN) THICKNESS (IN) COIL WEIGHT (LBS)
Alloy 400, Full Hard
C82649 Alloy 400, Full Hard  3/4 0.020 30-40
C82699 Alloy 400, Full Hard  3/4 0.020 40-60
C84699 Alloy 400, Full Hard  3/4 0.025 40-60
Alloy 400, 1/4 Hard
C83699 Alloy 400 1/4 Hard  3/4 0.025 40-60
C83649 Alloy 400 1/4 Hard  3/4 0.025 30-40
Zeron® 100
C82749 ZERON® 100  3/4 0.020 30-40
C82799 ZERON® 100  3/4 0.02 40-60
304 1/4 Hard SS
C82349 304 SS 1/4 Hard  3/4 0.020 30-40
C82399 304 SS 1/4 Hard  3/4 0.020 65-75
C83399 304 SS 1/4 Hard  3/4 0.025 65-75
316 SS
C83349 316 SS  3/4 0.020 30-40
C83499 316 SS  3/4 0.025 65-75
Titanium
X34299 Titanium 3/4 .025 40-60
Carbon Steel
R00331 Galvanized Carbon Steel 3/4 0.025 110



Coils for Subsea Applications Only

PART NUMBER MATERIAL WIDTH (IN) THICKNESS (IN) COIL WEIGHT (LB)
Alloy 625
X82201 Alloy 625 1 1/4 .030 110
Carbon Steel
R00332 Galvanized Carbon Steel 1 1/4 .025 110
Zeron® 100
R00880 ZERON® 100 1 1/4 .025 110



Coils for Insulation Applications

PART NUMBER MATERIAL WIDTH (IN) THICKNESS (IN) PACKAGE QTY PACKAGE WEIGHT (LB)
304 SS
C91499 304 SS 1/2 0.020 200'/roll 7
C93299 304 SS 1/2 0.020 850'/roll 28

*Use with C00169 or C40099 tools

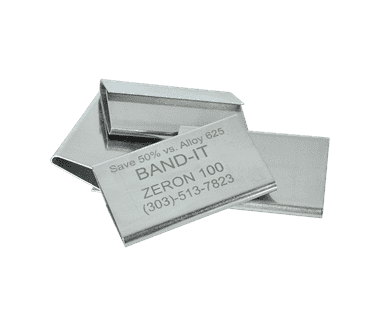

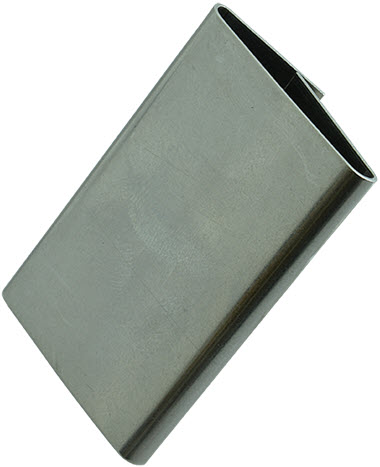

Seals for Downhole & Subsea Applications

PART NUMBER MATERIAL WIDTH (IN) PACKAGE QUANTITY
Alloy 400
C34699 Alloy 400   3/4 1000/box
ZERON® 100
C34799 ZERON® 100  3/4 1000/box
304 1/4 Hard SS
C34399 304 SS 1/4 Hard  3/4 1000/box
316 SS
C34499 316 SS  3/4 1000/box
Titanium
C34287 Titanium 3/4 1000/box
Carbon Steel
X34999 Galvanized Carbon Steel 3/4 1000/box



Seals for Subsea Applications Only

PART NUMBER MATERIAL WIDTH (IN) PACKAGE QUANTITY
Alloy 625
X78201 Alloy 625  1 1/4 1000/box
Carbon Steel
X78387 Galvanized Carbon Steel  1 1/4 1000/box
ZERON® 100
BKS-Z20 ZERON® 100  1 1/4 1000/box

Coils for Downhole & Subsea Applications

PART NUMBER MATERIAL WIDTH (MM) THICKNESS (MM) COIL WEIGHT (KG)
Alloy 400, Full Hard
C82649 Alloy 400, Full Hard 19.1 0.51 13.6 - 18.1
C82699 Alloy 400, Full Hard 19.1 0.51 18.1 - 27.2
C84699 Alloy 400, Full Hard 19.1 0.64 18.1 - 27.2
Alloy 400, 1/4 Hard
C83699 Alloy 400 1/4 Hard 19.1 0.64 18.1 - 27.2
C83649 Alloy 400 1/4 Hard 19.1 0.64 13.6 - 18.1
Zeron® 100
C82749 ZERON® 100 19.1 0.51 13.6 - 18.1
C82799 ZERON® 100 19.1 0.51 18.1 - 27.2
304 1/4 Hard SS
C82349 304 SS 1/4 Hard 19.1 0.51 13.6 - 18.1
C82399 304 SS 1/4 Hard 19.1 0.51 29.5 - 34.0
C83399 304 SS 1/4 Hard 19.1 0.64 29.5 - 34.0
316 SS
C83349 316 SS 19.1 0.64 13.6 - 18.1
C83499 316 SS 19.1 0.64 29.5 -34.0
Titanium
X34299 Titanium 19.1 0.64 18.1-27.2
Carbon Steel
R00331 Galvanized Carbon Steel 19.1 0.76 49.9



Coils for Subsea Applications Only

PART NUMBER MATERIAL WIDTH (MM) THICKNESS (MM) COIL WEIGHT (KG)
Alloy 625
X82201 Alloy 625 31.8 .76 49.9
Carbon Steel
R00332 Galvanized Carbon Steel 31.8 .76 49.9
Zeron® 100
R00880 ZERON® 100 31.8 .64 49.9



Coils for Insulation Applications

PART NUMBER MATERIAL WIDTH (MM) THICKNESS (MM) PACKAGE QTY PACKAGE WEIGHT (KG)
304 SS
C91499 304 SS 12.7 0.51 61m/roll 3.2
C93299 304 SS 12.7 0.51 259m/roll 12.7

*Use with C00169 or C40099 tools



Seals for Downhole & Subsea Applications

PART NUMBER MATERIAL WIDTH (MM) PACKAGE QUANTITY
Alloy 400
C34699 Alloy 400  19.1 1000/box
ZERON® 100
C34799 ZERON® 100 19.1 1000/box
304 1/4 Hard SS
C34399 304 SS 1/4 Hard 19.1 1000/box
316 SS
C34499 316 SS 19.1 1000/box
Titanium
C34287 Titanium 19.1 1000/box
Carbon Steel
X34999 Galvanized Carbon Steel 19.1 1000/box



Seals for Subsea Applications Only

PART NUMBER MATERIAL WIDTH (MM) PACKAGE QUANTITY
Alloy 625
X78201 Alloy 625  31.8 1000/box
Carbon Steel
X78387 Galvanized Carbon Steel  31.8 1000/box
ZERON® 100
BKS-Z20 ZERON® 100  31.8 1000/box
